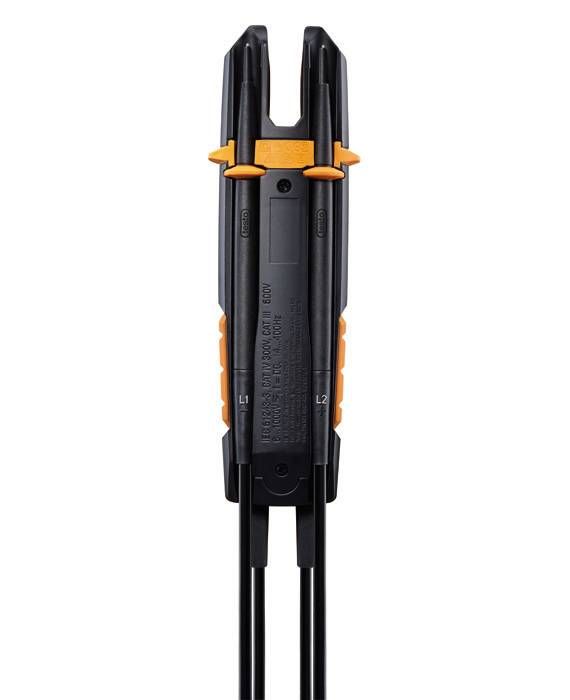

Testo 755-1 - Current/voltage tester
Special Price 20096
Regular Price: 22105.00
Overview
Measuring current with a voltage tester? The innovative testo 755-1 makes this possible – and is therefore suitable for virtually all daily electrical measuring tasks. The practical automated switch-on function and automatic measurement parameter detection also mean you can work more reliably than ever before with it.
- Easy, reliable operation through automatic measurement parameter detection
- Suitable for almost all electrical measuring tasks
- Exchangeable measuring tips
- DIN EN 61243-3:2010 certified
Product Description
The first voltage tester with current measurement is here: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure flow of current or current consumption and carry out continuity tests using a single instrument. In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring – without any switching on or selection.
The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points.
The testo 755-1 current/voltage tester is a genuine allrounder which will make your day-to-day work easier.
Delivery Scope
testo 755-1 current/voltage tester, including batteries, measuring tips and measuring tip caps.
| General technical data | |
|---|---|
| Dimensions | 199 x 62 x 40 mm |
| Operating temperature | -10 to +50 °C |
| Protection class | IP64 |
| Warranty | 2 years |
| Storage temperature | -15 to +60 °C |
| Weight | 310 g |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Authorizations | TÜV; CSA; CE |
| DC voltage | |
|---|---|
| Measuring range / Resolution | 6 to 600 V / 0.1 V |
| Accuracy | ± (1.5 % of mv + 3 Digit) |
| AC voltage | |
|---|---|
| Measuring range / Resolution | 6 to 600 V / 0.1 V |
| Accuracy | ± (1.5 % of mv + 3 Digit) |
| AC current | |
|---|---|
| Measuring range / Resolution | 200 A / 0.1 A |
| Accuracy | ± (3 % of mv + 3 Digit) |
| Resistance | |
|---|---|
| Measuring range / Resolution | 100 kOhm / 1 Ohm |
| Accuracy | ± (1.0 % of mv + 5 Digit) |
| Instrument Measurement Functions | |
|---|---|
| Continuity testing | yes |
| Display ligthing | yes |
| Hold | yes |
| Measuring point illumination | yes |
| Display (counts) | 4,000 |
